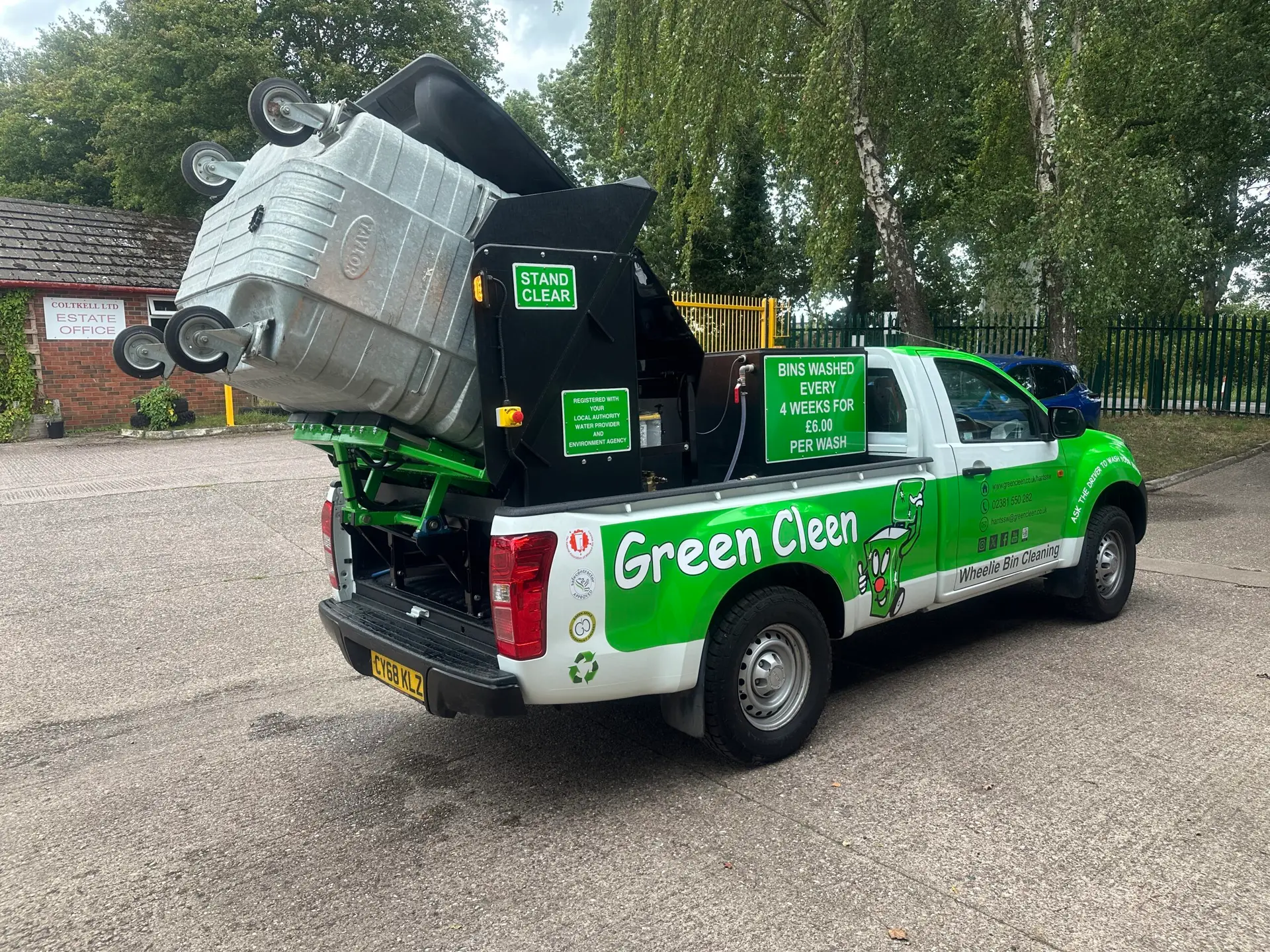

Pickup Mounted Bin Wash

The pickup-mounted Duplex bin cleaning equipment can clean wheelie bins and commercial waste containers ranging from 120L – 1280L metal or plastic bins. Fitting these bin cleaning machines to single-cab pickups makes them highly effective and manoeuvrable, with no special driving licenses required. After nearly 30 years of development, the pickup-mounted Duplex is our signature machine. We have manufactured over 150 of these machines across eight countries. The Duplex provides the operator with the means to achieve high productivity whilst ensuring compliance with Environmental Agencies and local water authority regulations. Our range fully recycles all water used, passing through an integrated 4-stage filtration process. Green Cleen’s double-acting hydraulic lifting frames can lift two residential bins or any RAL standard commercial waste containers. With two fixed orbital high-pressure tank cleaner heads for cleaning the inside of the bins and a high-pressure lance for cleaning the outside. For health and safety, this unit comes with 360° flashing beacons.

• Compact machine
• High-pressure wash system
• Double-acting hydraulic lift minimal physical effort required
• Integrated multi-stage water recycling system
• Orbital high-pressure wash heads
• High-pressure hand lance
• 360° flashing beacons
• Water pump 30L/pm
• Optima Gel Battery
• 12V electro-hydraulic system
• Removable filter tray
• Shot blast and powder-coated metalwork

• 13hp Honda or Briggs & Stratton petrol engine
• Water Tank Capacity 440L – 500L
• Water pump 30 L/pm 160 BAR/2320psi
• Optima Gel Battery
• Multi-stage filtration to 300 microns
• High-pressure hand lance 30 L/pm 160 BAR/2320psi

Duplex Bin Washer Dimensions

Main Machine

• Height 1.4m
• Width 1.66m
• Depth 1.65m

Water tank

• Height 1.0m
• Width 1.02m
• Depth 0.8m

Weight

•  Empty approx 350 kilo – full approx 789 kilo

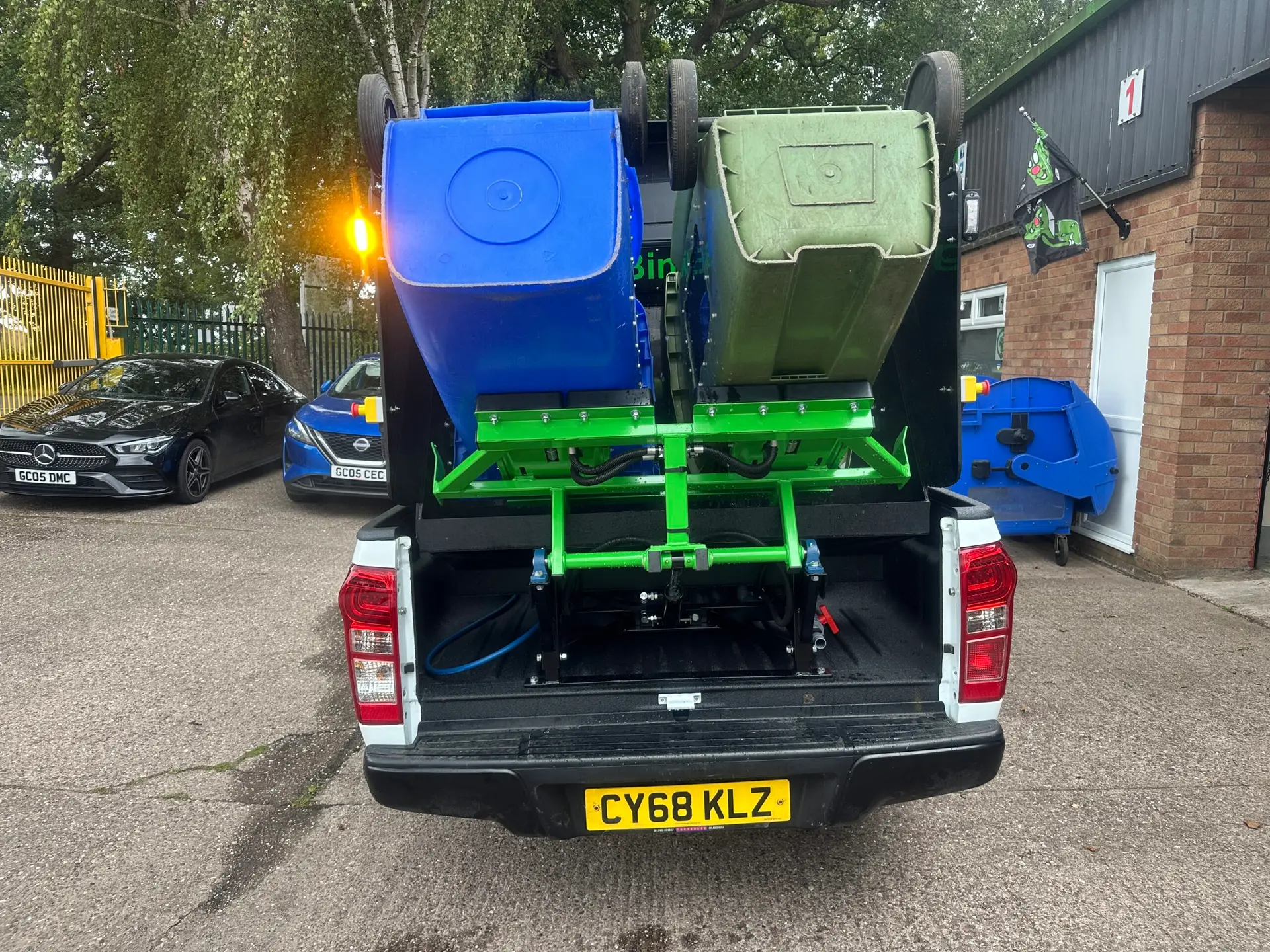

The pickup-mounted Duplex Bin Washer will fit most 2×4 or 4×4 SINGLE CAB pickup trucks. If you are considering the use of any chassis that is not specified below then you should first check with Green Cleen to ascertain its suitability or any additional fitting costs that may be incurred.

Pickups that we have fitted include:

• Ford Ranger (2×4 – 4×4)
• Toyota Hilux (2×4 – 4×4)
• Isuzu D-Max (2×4 – 4×4)
• Mitsubishi L200 (2×4)
• Mazda B2500 (2×4 – 4×4)

1. Loadspace length minimum 2100mm
2. Loadspace width between wheel arches minimum 1000mm
3. Width between flanges of tailgate minimum 1350mm
4. Load bed height maximum 800mm
5. Payload minimum 950Kg
6. Some vehicles can use load liners please check first with Green Cleen. Line-X protective paint is allowed.
7. If a tow bar is fitted this may have to be removed. This depends on how far it projects from the rear.
8. The tailgate MUST be removed, before bringing the vehicle to Green Cleen for machine fitting.

Please note, that any chassis supplied to Green Cleen must be without any beaver tail, box body, extension frame, tailgate or tipper body. It is the customer’s responsibility to ensure that the chassis is supplied to Green Cleen in a roadworthy condition with all chassis parts and lights intact. If you require any further information or clarification as to the suitability or costs of fitting the Green Cleen range then please do not hesitate to contact us.
